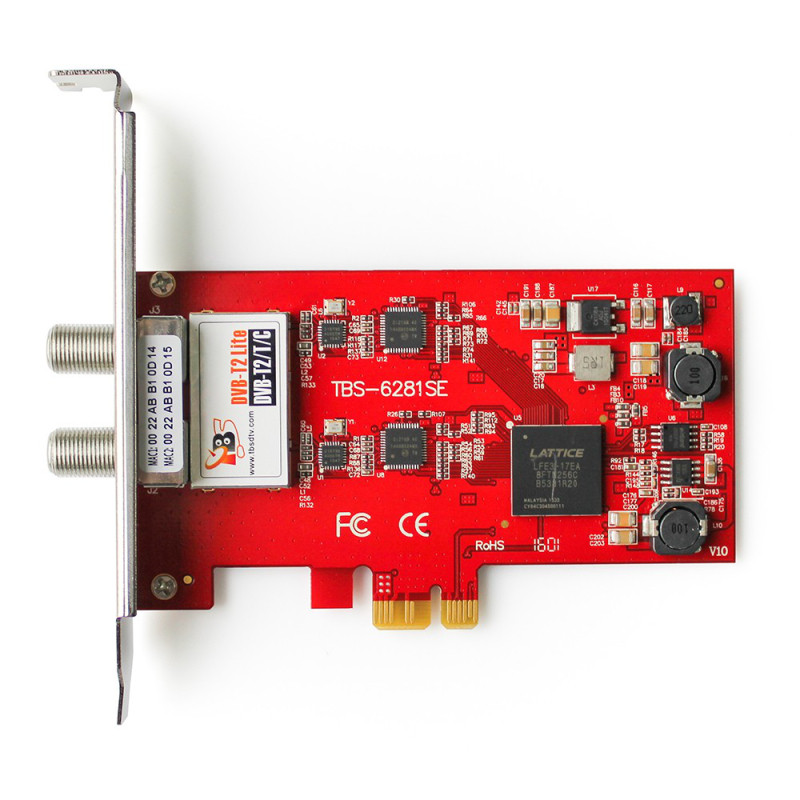

DVB-T2/C Dual-Tuner, PCIe Terrestrial or cable-TV-card (LP), TBS-6281 SE

The Dual-Tuner TV card is suitable for the reception of digital terrestrial and cable television to all HD resolutions. It has two DVB-T2/C Tuners , so you can recording one channel and watching another channel at the same time. You can easily record live TV immediately or time-controlled on your data carrier by only one click. This card is ideal for Media Center and PC systems and due to the compact Low-Profile design fits in almost all cases. It possesses drivers for most 32-Bit and 64-Bit operating systems (Microsoft and Linux). In addition to the excellent facilities and the modern PCI-Express (x1) Interface, is also provided with low power consumption and thus a low waste heat, for silent operation.

Product Features
Digital terrestrial / cable TV reception card with 2 Tuners for TV and Radio reception
Low-Profile Format
Receive two channels simultaneously for recording AND watch in at the same time
PCI-Express card (PCIe x1, x4, x8 oder x16)
All resolutions and codecs (e.g.: 1080p, FullHD, 4K, MPEG, H.264, HEVC and many more) are supported, but also depending on your PC-hardware/software
Plug & Play Installation
Manual and scheduled recording of Digital TV / Radio
Teletext
TimeShift function to Pause Live TV
Electronic Program Guide (EPG)
Works natively in Windows7® Media Center
Full support for 32-Bit and 64-Bit operating systems
Software application with multiple functionalities for TV reception


Specification
Support PLP( Physical Layer Pipe)
DVB-T2/T2 Lite/T
DVB-T2/T Receiving Channel: VHF band and UHF band
Channel Bandwidth: 6, 7, 8 MHz
DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
Guard interval: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256
Intermediate frequency:
IF mode: Low IF
Center IF Frequency: 3 to 5 MHz
Note: default 4MHz
RF-Input Impedance 75O (IEC-DIN female)
RF-Output Impedance 75O (IEC-DIN male)
Dimension: 115*68.7mm (length x height)
Max Power consumption: 7W

DVB-C
Fully compliant with DVB-C and ITU J83 A/B/C specifications
Receiving Frequency: 47 to 862 MHz Tuning Range
Input level: -65 to -10dBm
16QAM, 32QAM, 64QAM, 128QAM and 256QAM Support
Symbol Rate: 0.87 to 9Mbaud


Connections and other details
Two terrestrial/cable TV antenna inputs
Max. dimensions of the card (W x D x H in cm): 5,8 x 11,7 x 2
Weight: 0.08 kg


Minimal System Requirements
Operating system (32-Bit and 64-Bit): Windows® XP, Vista®, Windows7®, Windows8.x, Windows10, Linux
CPU for SDTV: min. Pentium3, 1 GHz or similar AMD Athlon
CPU for HDTV: min. Pentium3, 3 GHz or similar AMD Athlon (Dual Core recommended) or alternatively video decoding with graphic chip
Recommended 1GB of RAM
Hard disk with min. 1GB free capacity
Graphics card with min. 64MB memory
Sound card with DirectX® 9-Support or higher
One free PCIe Slot (x1, x4, x8 or x16)
DVB-T/ or DVB-T2 reception area or cable connection

Package Content
1 x Dual-Tuner DVB-T2/C PCIe plug-in card (x1)
1 x Slot aperture for Low-Profile
1 x F-coax connector
1 x Drivers, Quick Installation Guide and Software (as download)
